Description & Overall Dimensions Drawing
MCWF Air-tight Explosion-proof Scraper Conveyor For Wet Extracted Soybean（Rapeseed） Dregs (Meal)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Features
MCWF Air-tight Explosion-proof Scraper Conveyor With Welded Chain(For grain and oil industry-)
MCWF Type Air-tight Explosion-proof En-Masse Conveyor With Welded Offset Sidebar Chain
Features:
1. Design: The scraper conveyor is designed according to absorb advanced technology from abroad and our many years experience to optimization ;
2.Chain of Conveying: The chain is used high-strength welded chain, because its pins and chain boards are treated specially,so it’s highly strength and wear-resistance
3. Scraper:Be made of nylon,they are high mechanical strength toughness, outstanding fatigue resistance, heat resistance (be under 150 ℃ for long term working),Small friction coefficient with smooth surface,wear resistance, corrosion resistance,non-toxic,non-odour,excellent weather resistance,against anti-erosion of biological,there are good antibacterial and mildew resistance ability.
4. Machine performance: it is a nice appearance with large conveying capacity, good sealing, long time operation, low energy consumption, low noise, and lower
5, installation and maintenance: it is simple structure, easy installation, flexible process layout, multi-point feeding, there are quick-opening maintenance doors and logistics observation windows;
6. Safety protection: The tail is installed with stall sensor and the head is installed with material blocking sensor;
7. Application: Specially used for wet meal conveying.
Wet Extracted Soybean（Rapeseed） Dregs (Meal)Wet Extracted Soybean（Rapeseed） Dregs (Meal)Wet Extracted Soybean（Rapeseed） Dregs (Meal)Wet Extracted Soybean（Rapeseed） Dregs (Meal) Wet Extracted Soybean（Rapeseed） Dregs (Meal) Wet Extracted Soybean（Rapeseed） Dregs (Meal) Wet Extracted Soybean（Rapeseed） Dregs (Meal) Wet Extracted Soybean（Rapeseed） Dregs (Meal)
Main Parameters
| Model | capacity | Chain speed | pitch | Chain width | Scraper height | Head roller gear | slot width | bearing height | Cavity height |
| m3/h | m/s | mm | mm | mm | mm | mm | mm | ||
| MCWF200 | 15~30 | 0.20~0.40 | 78.1 | 170 | 120 | 12 | 200 | 150 | 320 |
| MCWF250 | 24~48 | 0.20~0.40 | 78.1 | 220 | 150 | 12 | 250 | 180 | 380 |
| MCWF315 | 35~75 | 0.20~0.45 | 101.6 | 285 | 170 | 12 | 315 | 200 | 430 |
| MCWF400 | 55~120 | 0.20~0.45 | 101.6 | 370 | 220 | 12 | 400 | 250 | 530 |
| MCWF500 | 125~190 | 0.30~0.45 | 153.67 | 470 | 270 | 10 | 500 | 300 | 630 |
| MCWF630 | 165~275 | 0.30~0.50 | 153.67 | 600 | 270 | 12 | 630 | 300 | 630 |
| MCWF800 | 200~335 | 0.30~0.50 | 153.67 | 770 | 270 | 12 | 800 | 300 | 630 |
| MCWF1000 | 300~470 | 0.35~0.55 | 153.67 | 2×460 | 270 | 12 | 1000 | 300 | 630 |
| MCWF1200 | 360~565 | 0.35~0.55 | 153.67 | 2×560 | 270 | 12 | 1200 | 300 | 630 |

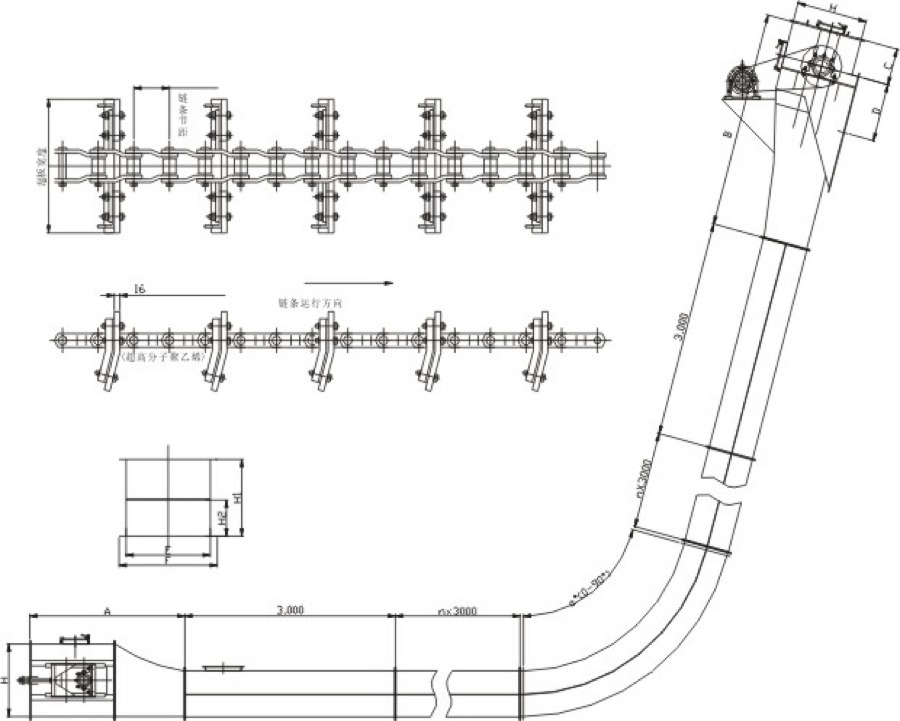

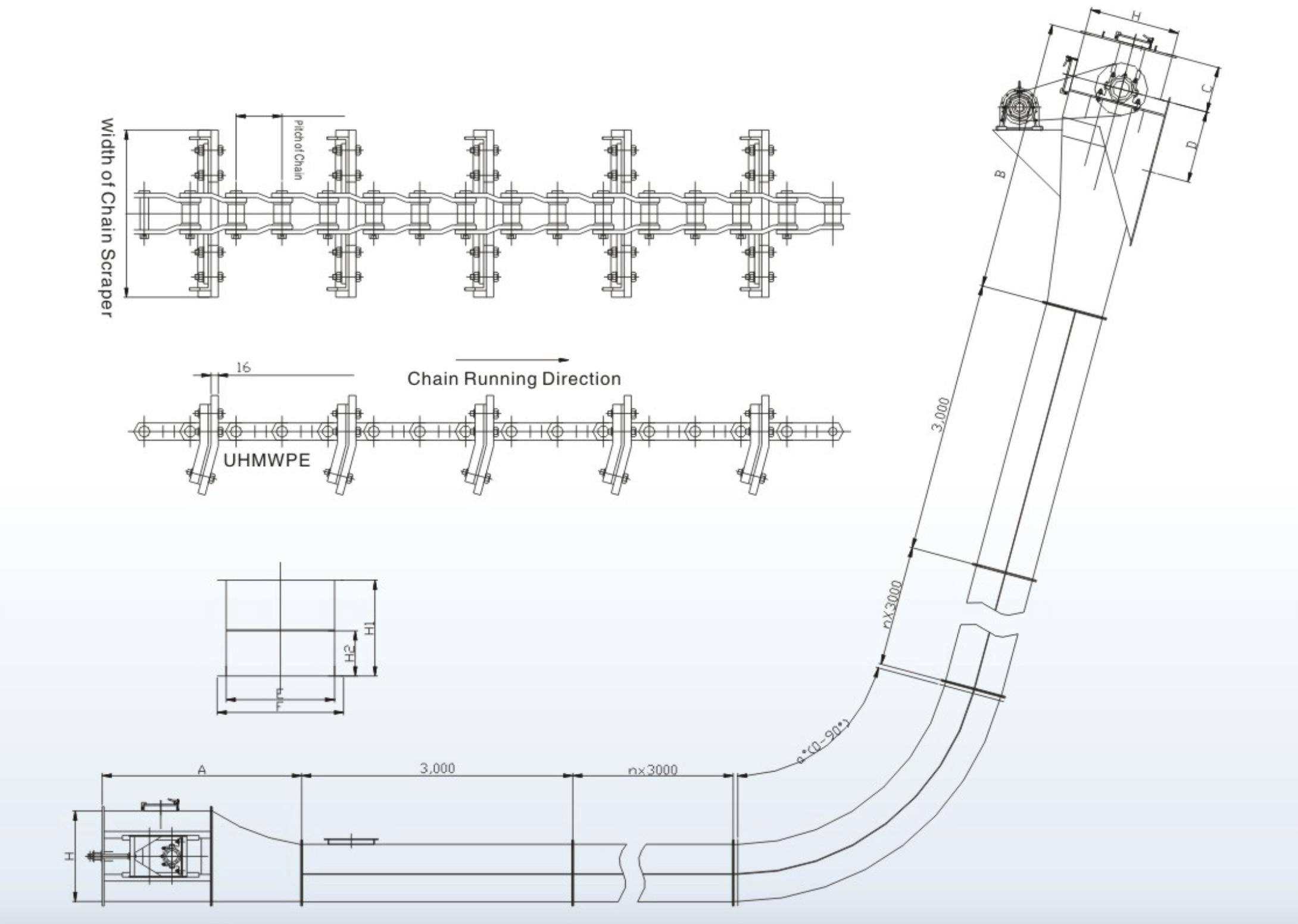

Overall Dimensions Drawing:
Main Dimensions
| Model | A | B | C | D | E | F | H | H1 | H2 |
| MCWF200 | 1900 | 2000 | 275 | 500 | 200 | 280 | 550 | 320 | 150 |
| MCWF250 | 1900 | 2000 | 300 | 500 | 250 | 330 | 600 | 380 | 180 |
| MCWF315 | 2200 | 2500 | 325 | 650 | 315 | 415 | 700 | 430 | 200 |
| MCWF400 | 2200 | 2500 | 375 | 650 | 400 | 500 | 800 | 530 | 250 |
| MCWF500 | 2200 | 3000 | 500 | 800 | 500 | 600 | 1000 | 630 | 300 |
| MCWF630 | 2300 | 3000 | 600 | 800 | 630 | 730 | 1100 | 630 | 300 |
| MCWF800 | 2300 | 3000 | 600 | 800 | 800 | 900 | 1100 | 630 | 300 |
| MCWF1000 | 2300 | 3000 | 600 | 800 | 1000 | 1100 | 1100 | 630 | 300 |
| MCWF1200 | 2300 | 3000 | 600 | 800 | 1200 | 1320 | 1100 | 630 | 300 |
