Swing type Ship-loader belt conveyor
Structural characteristics and working principle
The swinging ship loader is mainly composed of a large-span steel bridge and a mobile trolley placed above it, which is equipped with a loading arm. The design of the bridge is perpendicular to the dock shoreline, with the rear pivot point being a horizontal hinge point and the front support legs equipped with driving wheels. Under the drive of the walking mechanism, the bridge can move back and forth along the track at the front of the dock, thereby achieving the left and right swing of the entire bridge around the rear hinge point. The trolley on the bridge can move freely on the bridge, and the shipping tape mechanism forms
| Model | BDC800 | BDC1000 | BDC1200 | DBC1400 | BDC1600 |
| Rated conveying capacity(t/h) | 500 | 850 | 1500 | 2100 | 3500 |
| Belt width(mm) | 800 | 1000 | 1200 | 1400 | 1600 |
| Belt speed(m/s) | 2.5 | 2.5 | 3.15 | 3.15 | 4 |
| Standard length(m) | 30/40/50 | 30/40/50 | 30/40/50 | 30/40/50 | 30/40/50 |
| Angle(°) | 20° | 20° | 20° | 20° | 20° |
| Scalable length(m) | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Swing type ship loaders are not only suitable for bulk cargo loading operations, but can also be widely used for loading and unloading various goods such as containers and general cargo. Its diverse functions make the oscillating ship loader a "versatile" in port logistics, meeting the diverse needs of different customers.
In summary, the swing type ship loader plays a crucial role in port logistics due to its structural flexibility, high operational efficiency, ease of operation, and wide applicability. With the continuous advancement of technology and the increasing development of port logistics, oscillating ship loaders will have a broader application prospect.

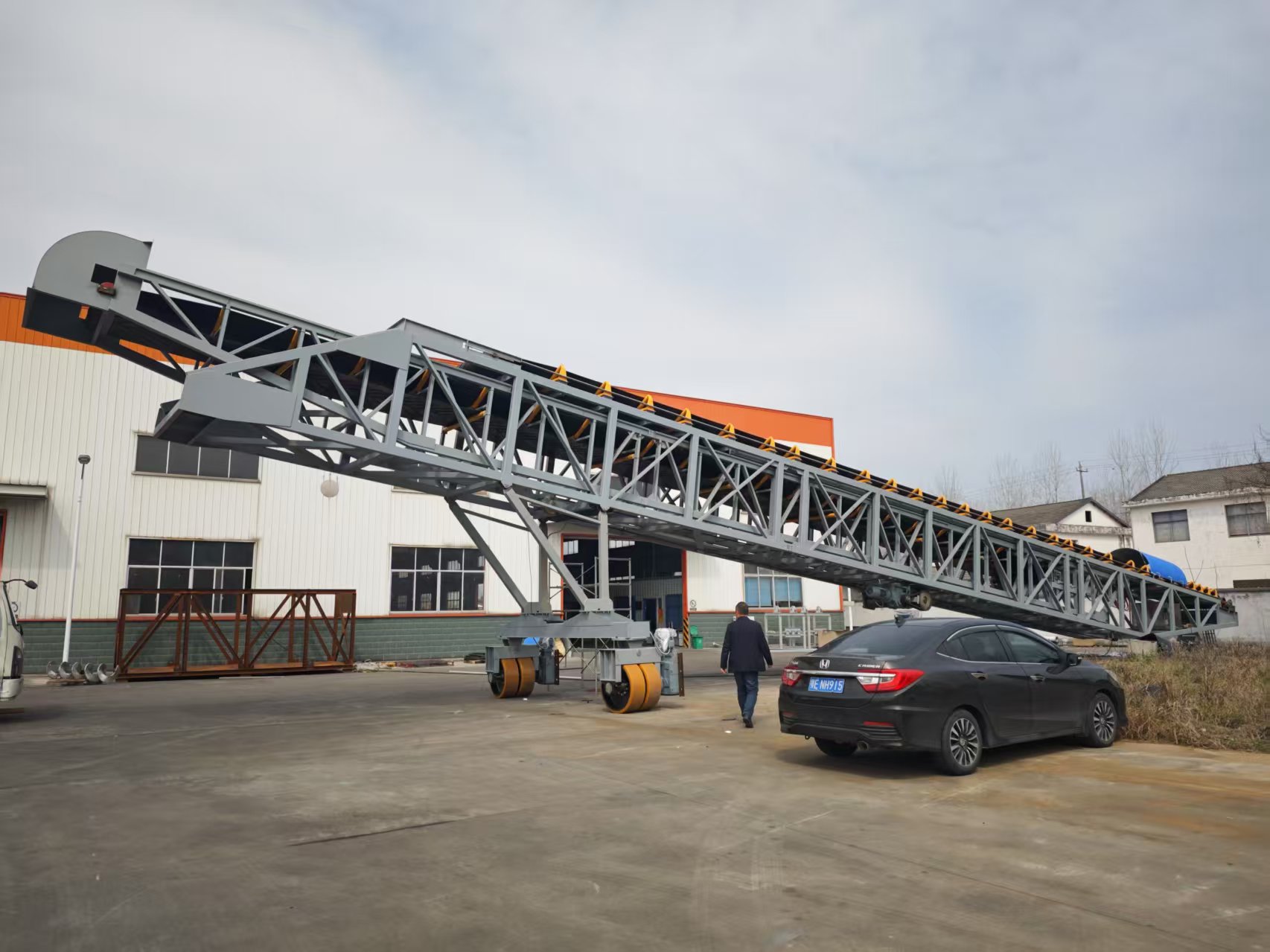

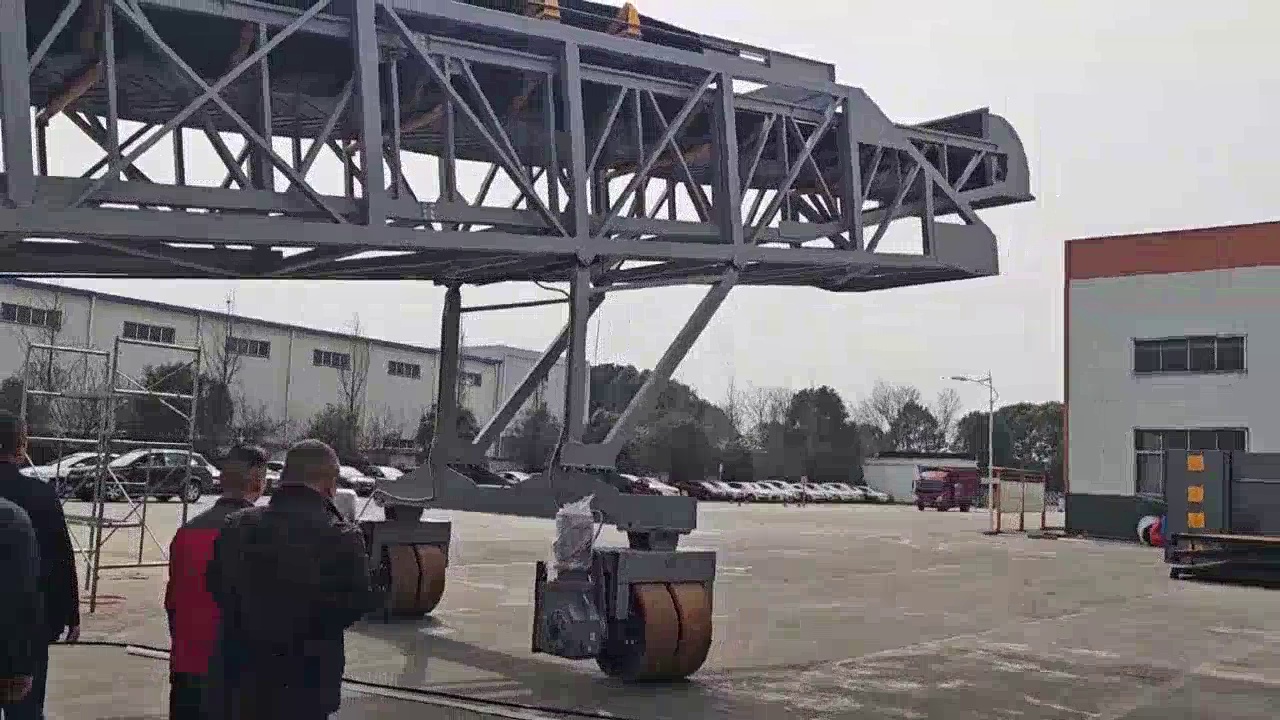

Application case :Huaxun Swing type ship-loader(650t/h)
