Mobile Iron Ore Coal Dry Cargo Pellet Bulk Material Handling Barge Ship Loader stacker
The ship loader offers a high efficiency material handling solution for Seaport bulk material Transportation. The Mobile and Telescoping features allows the operator full control when stockpiling a range of materials to the vessels . The optimized designing allows for up to +28% larger stockpile capacity when compared to conventional fixed length conveyor systems.

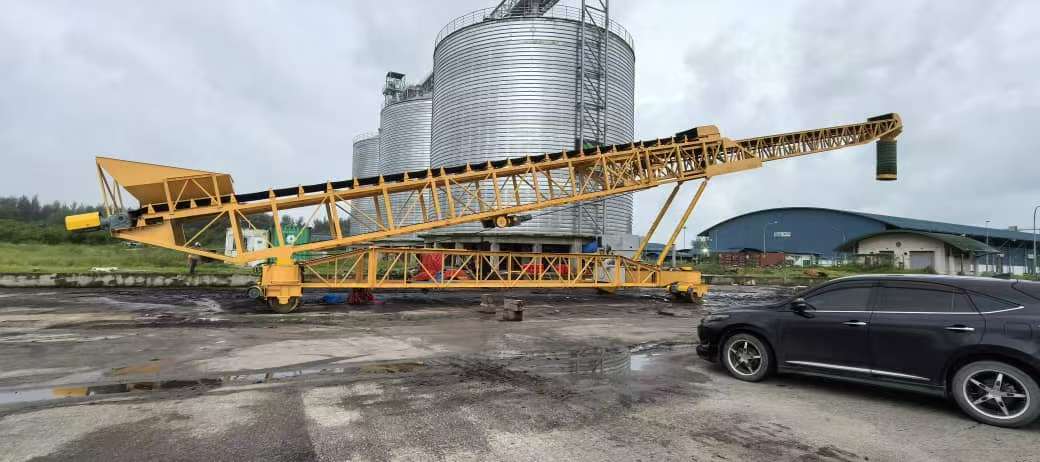

It is widely used for flexible mobile stacking in various occasions, the stacking height can reach up to 20 meters. Because the stacker has the characteristics of being movable, rotatable and retractable, the stacking capacity and efficiency are greatly increased.
The ship loader offers a high efficiency material handling solution for Seaport bulk material Transportation. The Mobile and Telescoping features allows the operator full control when stockpiling a range of materials to the vessels . The optimized designing allows for up to +28% larger stockpile capacity when compared to conventional fixed length conveyor systems.
It is widely used for flexible mobile stacking in various occasions, the stacking height can reach up to 20 meters. Because the stacker has the characteristics of being movable, rotatable and retractable, the stacking capacity and efficiency are greatly increased.
| Model | ZC800 | ZC1000 | ZC1200 | ZC1400 |
ZC1600 |
| Rated conveying capacity(t/h) | 500 | 850 | 1500 | 2100 |
3500 |
| Belt width(mm) | 800 | 1000 | 1200 | 1400 |
1600 |
| Belt speed(m/s) | 2.5 | 2.5 | 3.15 | 3.15 |
4 |
| Standard length(m) | 30/40/50 | 30/40/50 | 30/40/50 | 30/40/50 |
30/40/50 |
| Angle（°） | 20° | 20° | 20° | 20° |
20° |
| Scalable length（m） | 10-20 | 10-20 | 10-20 | 10-20 |
10-20 |
- Working as part of a mobile system on short to medium term projects.
- Ship loading directly to vessels.
- Loading directly to trucks or rail wagons.

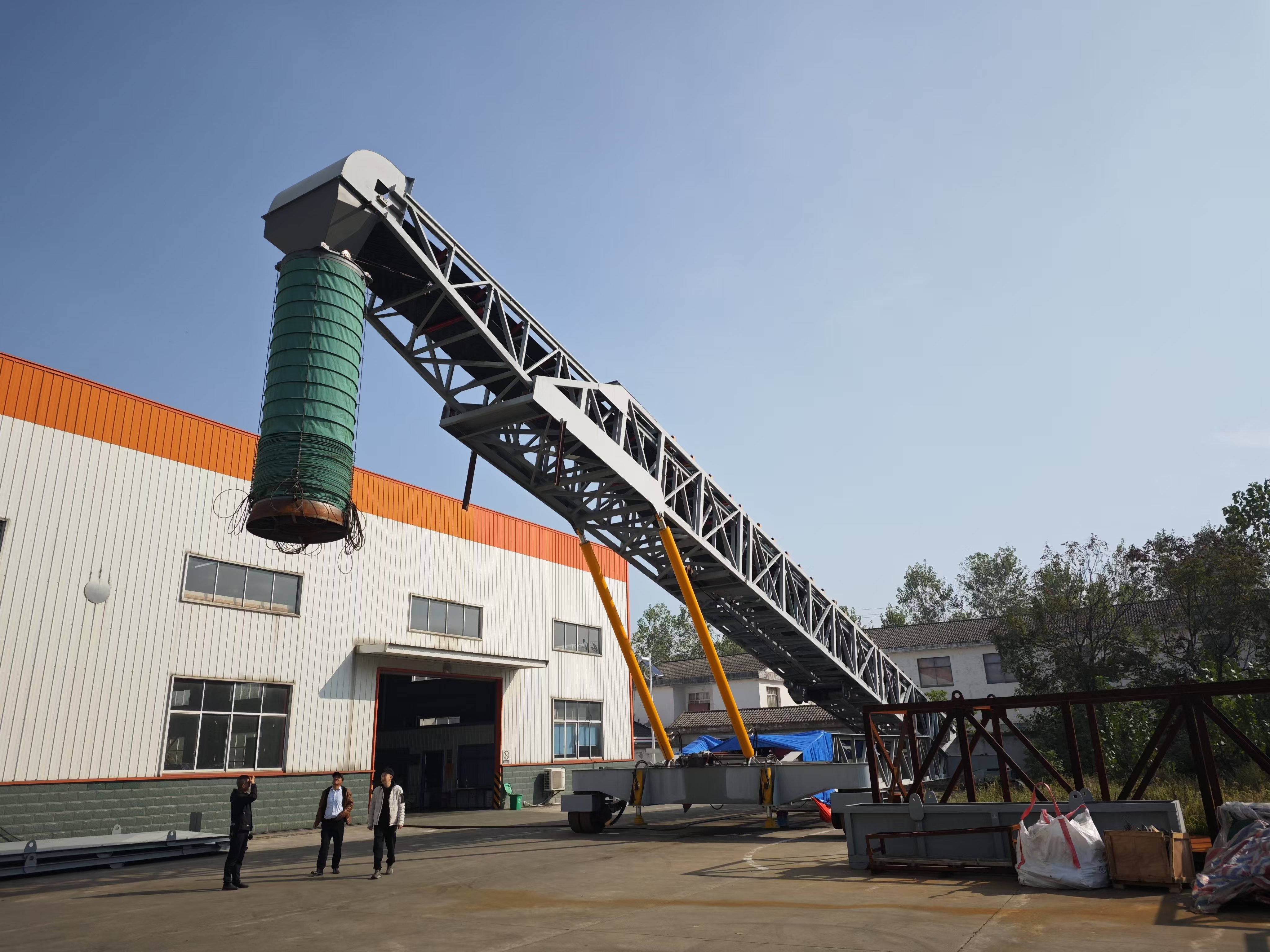

Huaxun Ship loader to veseel（650t/h）
