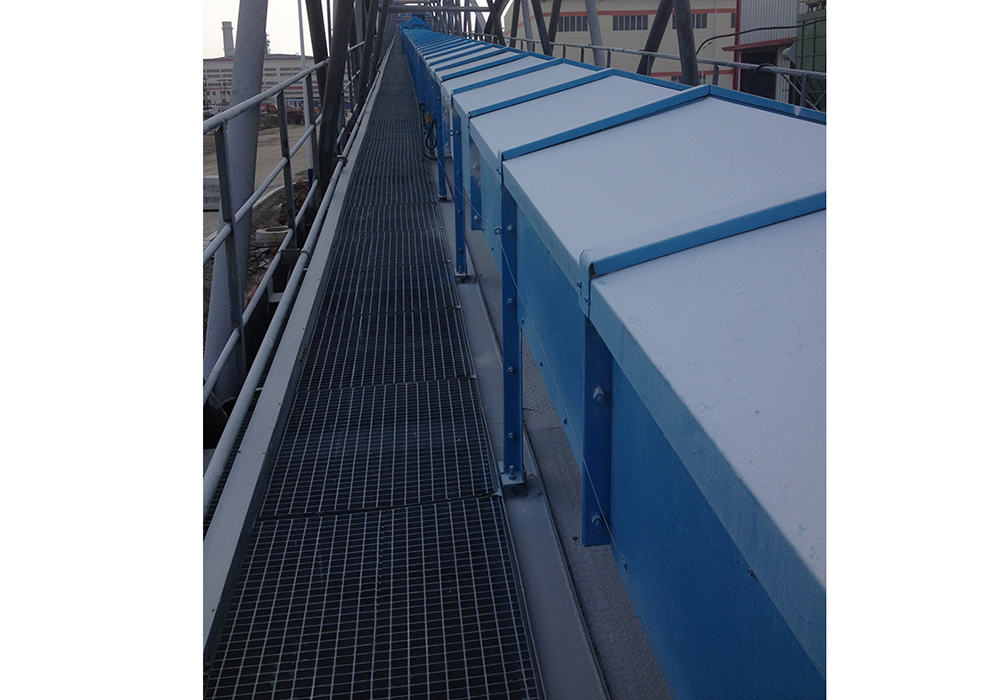

Fully Sealed Air Supported Belt Conveyor
1.Low operating resistance and energy consumption
2.Smooth operation and low maintenance costs
3.High environmental protection and safety
4.Wide applicability
5.Extend service life
| Model | QDS650 | QDS800 | QDS1000 | QDS1200 | QDS1400 | QDS1600 | QDS1800 |
| Rated conveying capacity(t/h) | 100-300 | 150-500 | 250-800 | 400-1200 | 500-1500 | 650-2000 | 800-2500 |
| Belt width(mm) | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Belt speed(m/s) | 1.25~4 | 1.25~4 | 1.25~4 | 1.25~4 | 1.25~4 | 1.25~4 | 1.25~4 |
Note:The conveying capacity in this table is calculated based on the physical propertirs of the grain(bluk density:0.72).Transporting other materials requires separated calculations based on the physical properties of the material and the on-site process characteristics.

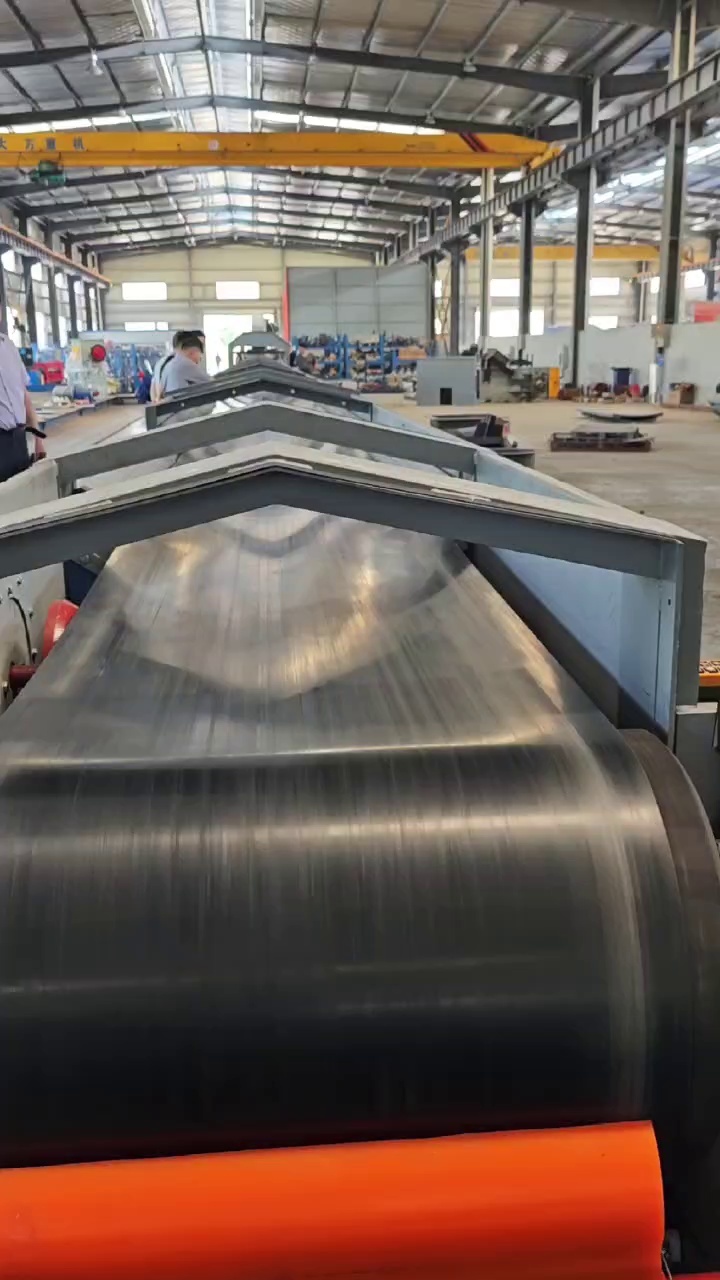

The air cushion belt conveyor has similarities in its structural composition with ordinary belt conveyors, both of which include core components such as rollers, conveyor belts, driving devices, and tensioning devices. However, the uniqueness of the air cushion conveyor lies in its removal of the upper support roller from ordinary conveyors (some models even do not use the lower support roller), and the addition of key components such as fans and air chambers. Because of this innovative design, air cushion belt conveyors have been widely used in various industries such as coal, electricity, metallurgy, chemical, machinery, grain, light industry, ports, and building materials. Especially in the port industry, they are often used in bulk grain loading and unloading terminals, demonstrating their excellent bulk material conveying capabilities.

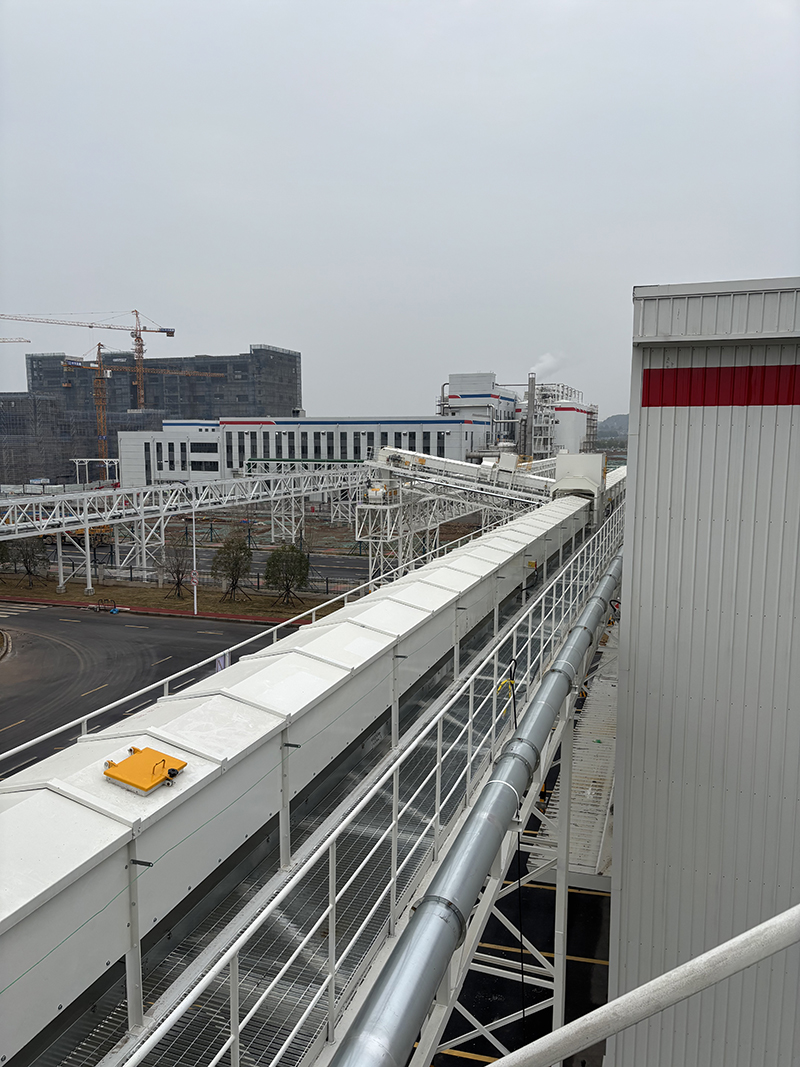

Application case: Air supported belt conveyor for grain slio
