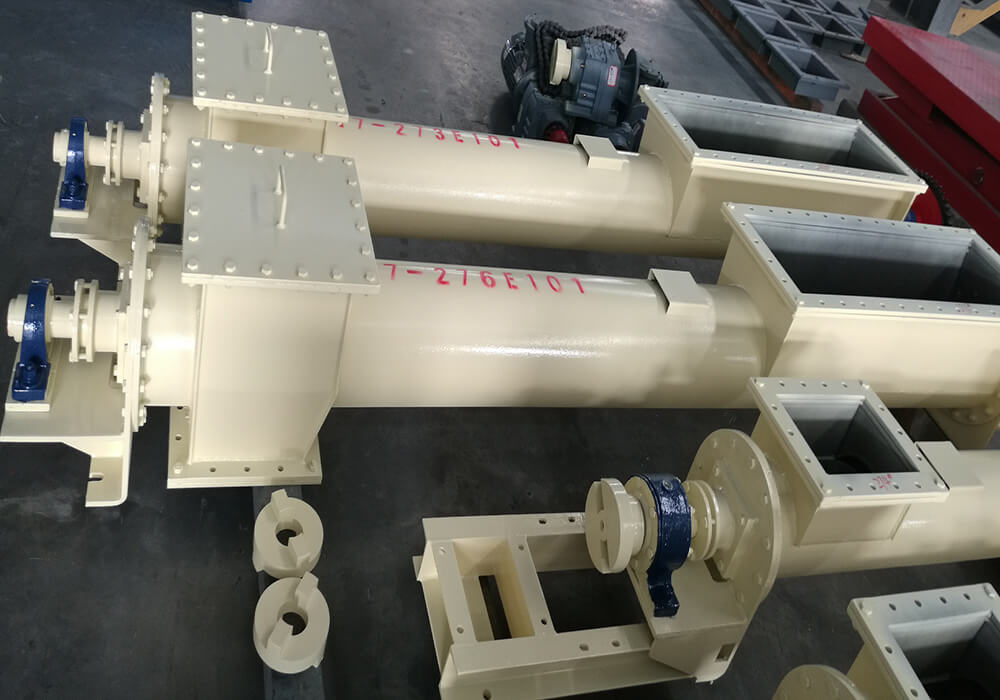

WLS Shaftless Screw Conveyor/Spiral conveyor/Helix conveyor/Auger conveyor
WLS Shaftless Screw Conveyor/Spiral conveyor/Helix conveyor/Auger conveyor
Hubei Yidu Huaxun Intelligent Conveyer is one of the toppest WLS Shaftless Screw Conveyor in China.During these years of exporting , Hubei Yidu Huaxun Intelligent Conveyer now has rich experience in the worldwide markets
Share This Product:
  • FEATURES
  • MAIN PARAMETERS
Spiral conveyor/Helix conveyor/Auger conveyor
  • Features:

    LSW shaftless screw conveyor is used in chemical industry, food, medicine,paper mill,beverage and so on which conveying viscous paste (such as chemical raw materials, waste pulp, malt, sludge) and easily wound materials (such as domestic garbage)

  • Working principle:

    The shaftless spiral body is a thick banded blade,The spiral body contacts with the lining plate at the bottom of the inner wall of the shell (sliding). The material is transported by driving device.

Model LSW150 LSW200 LSW250 LSW300 LSW400 LSW500
screw body diameter(mm) 150 184 237 284 365 470
Shell tube diameter(mm) 180 219 273 351 402 500
working angle(a) 0° ~30° 0° ~30° 0° ~30° 0° 〜30° 0。~30° 0° ~30°
max conveying distance(meter) 12 13 16 18 22 25
max conveying capacity(ton/hour) 2.4 7 9 13 18 28
power (kw) L≤7meter 1.5 2.2 3 5.5 11 11
L>7meter 2.2 3 4 7.5 15 15
