MSZ Scraper Conveyor
MSZ Scraper Conveyor
Hubei Yidu Huaxun Intelligent Conveyer is one of the toppest MSZ Scraper Conveyor For Cement in China.During these years of exporting , Hubei Yidu Huaxun Intelligent Conveyer now has rich experience in the worldwide markets
Share This Product:
  • Features
  • Main Parameters
  • Main Dimensions

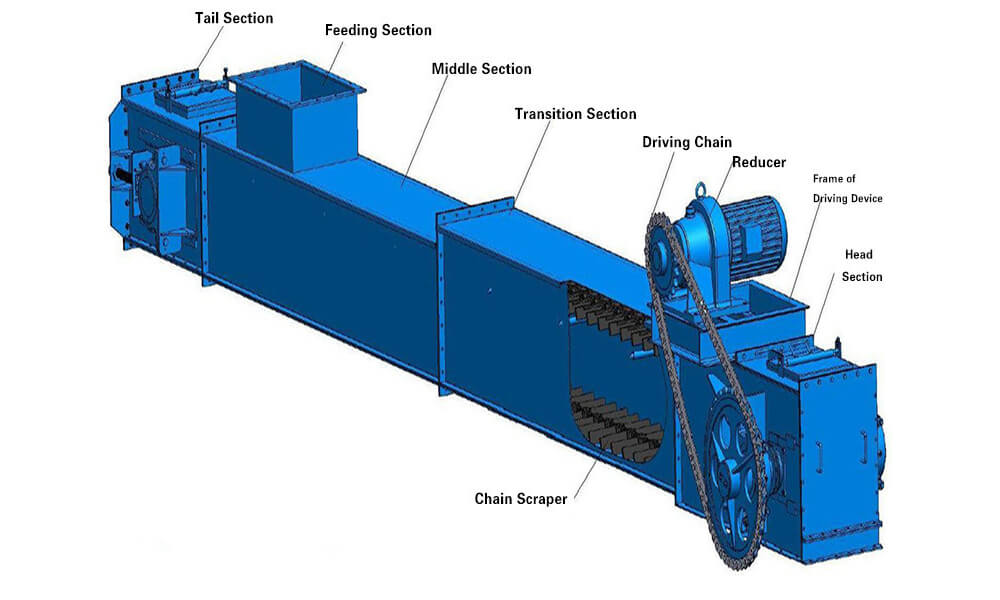

  • MSZ scraper conveyor is engaged in conveying cement industry,the cover of machine is more wear-resistant and convenient for quick replacement,In order to make the elongation of traction chain be compensated in high temperature operation,The upper rack is attached rollers,The temperature of conveying materials is 300℃,there are 3 types for this scraper conveyors,the maximum capacity is 200 Ton/hour.

Model

MSZ315

MSZ440

MSZ540

solt(MM )

315

440

540

loading depth(MM )

160

250

400

capacity(T/H )

25/31.5

80/100

160/200

max conveying distance(M )

50

50

50

chains

model

Y3005

Y3005

Y3005

allowableload(KN)

100

100

100

weight(KG/M)

26

29

33

speed(M/S )

0.16/0.20

0.16/0.20

0.16/0.2

Model

head

head shaft

Intermediate

tail

H1

H2

H3

H4

H5

H6

S1

S2

S3

D

M1

M2

M3

t1

t2

t3

t4

t5

t6

MSZ315

397

1046

420

1080

1500

180

552.5

429

679.5

115

335

461

944

944

500

200

500

1200

700

MSZ440

397

1046

420

1080

1500

180

641

507

772

125

460

586

944

944

500

200

500

1200

824

MSZ540

397

1046

420

1080

1500

180

724

587

862

140

560

686

944

944

500

200

500

1200

936
